Avaya 500v2 и Goip4

[dmitry.dev]

Добрый день.
Второй день мучаюсь, не могу настроить шлюз. С SIP столкнулся буквально вчера.
Наткнулся на статью http://www.contact-centr.ru/utils/nastr ... astix.html и попытался воспроизвести эти настройки на станции, но.. максимум чего добился, это вот такой ругани и подобной ей:

Код: Выделить всё

1675220mS SIP Rx: UDP 10.10.10.240:5060 -> 10.10.10.202:5060
                    REGISTER sip:10.10.10.202 SIP/2.0
                    Via: SIP/2.0/UDP 10.10.10.240:5060;branch=z9hG4bK805635739
                    From: "sip8000" <sip:8000@10.10.10.202>;tag=1991840723
                    To: "sip8000" <sip:8000@10.10.10.202>
                    Call-ID: 1573252183@10.10.10.240
                    CSeq: 100 REGISTER
                    Contact: <sip:8000@10.10.10.240:5060>;expires=240
                    Max-Forwards: 30
                    User-Agent: dble
                    Expires: 240
                    Content-Length: 0

   1675222mS SIP Reg/Opt Rx: 17
                    REGISTER sip:10.10.10.202 SIP/2.0
                    Via: SIP/2.0/UDP 10.10.10.240:5060;branch=z9hG4bK805635739
                    From: "sip8000" <sip:8000@10.10.10.202>;tag=1991840723
                    To: "sip8000" <sip:8000@10.10.10.202>
                    Call-ID: 1573252183@10.10.10.240
                    CSeq: 100 REGISTER
                    Contact: <sip:8000@10.10.10.240:5060>;expires=240
                    Max-Forwards: 30
                    User-Agent: dble
                    Expires: 240
                    Content-Length: 0

   1675222mS Sip: Unsupported sip incoming method on trunk interface <REGISTER> - ignoring
   1675222mS Sip: Cannot accept call: reason=405 (Method Not Allowed)
   1675406mS SIP Rx: UDP 10.10.10.240:5060 -> 10.10.10.202:5060
                    REGISTER sip:10.10.10.202 SIP/2.0
                    Via: SIP/2.0/UDP 10.10.10.240:5060;branch=z9hG4bK1213893817
                    From: "sip8000" <sip:8000@10.10.10.202>;tag=57744712
                    To: "sip8000" <sip:8000@10.10.10.202>
                    Call-ID: 1573252183@10.10.10.240
                    CSeq: 99 REGISTER
                    Contact: <sip:8000@10.10.10.240:5060>;expires=0
                    Max-Forwards: 30
                    User-Agent: dble
                    Expires: 0
                    Content-Length: 0

   1675408mS SIP Reg/Opt Rx: 17
                    REGISTER sip:10.10.10.202 SIP/2.0
                    Via: SIP/2.0/UDP 10.10.10.240:5060;branch=z9hG4bK1213893817
                    From: "sip8000" <sip:8000@10.10.10.202>;tag=57744712
                    To: "sip8000" <sip:8000@10.10.10.202>
                    Call-ID: 1573252183@10.10.10.240
                    CSeq: 99 REGISTER
                    Contact: <sip:8000@10.10.10.240:5060>;expires=0
                    Max-Forwards: 30
                    User-Agent: dble
                    Expires: 0
                    Content-Length: 0

   1675408mS Sip: Unsupported sip incoming method on trunk interface <REGISTER> - ignoring
   1675408mS Sip: Cannot accept call: reason=405 (Method Not Allowed)

Заранее благодарен за любую помощь.

[Pterodahtil]

REGISTER - встречная сторона пытается зарегистрироваться на ipo. Насколько я понимаю. все должно быть наоборот. Либо отключите регистрацию, либо ципляйте как абонента, но это другая лицензия

[dmitry.dev]

REGISTER - встречная сторона пытается зарегистрироваться на ipo. Насколько я понимаю. все должно быть наоборот. Либо отключите регистрацию, либо ципляйте как абонента, но это другая лицензия

Спасибо за наводку. Вдумчивое прочтение мануала к шлюзу выявило режим "Trunk Gateway Mode", исходящие заработали. Буду разбираться с входящими.

[Slavka79]

UP.
День добрый, скажите удалось ли настроить данную связку?

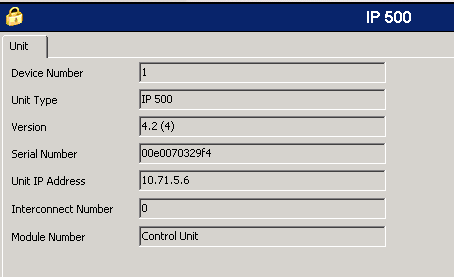

У меня в наличии ipo500

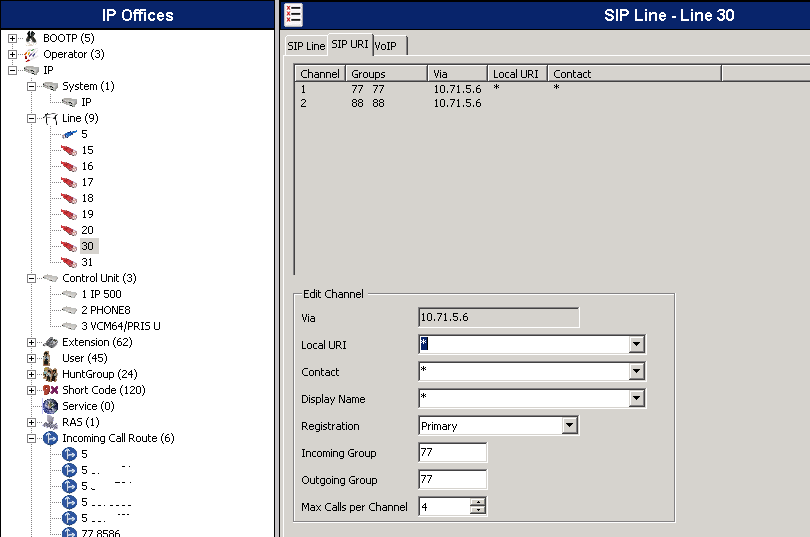

Настроил транк



для исходящих сделал шорт код

Продолжение следует

[Slavka79]

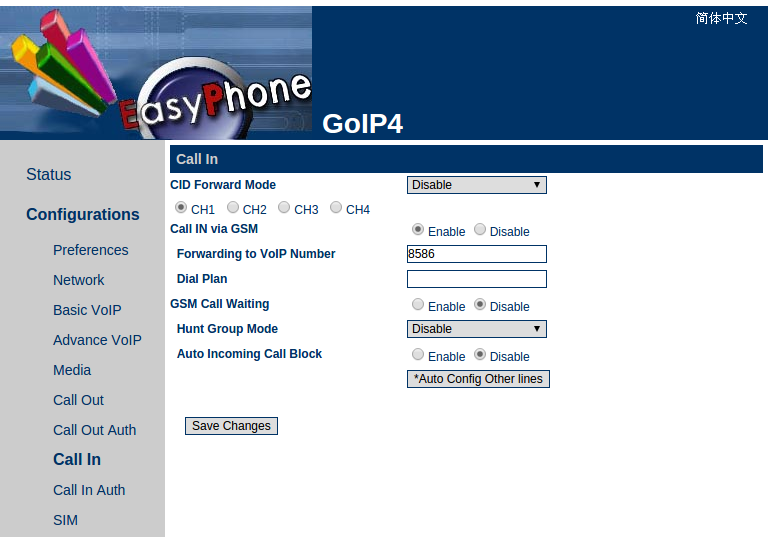

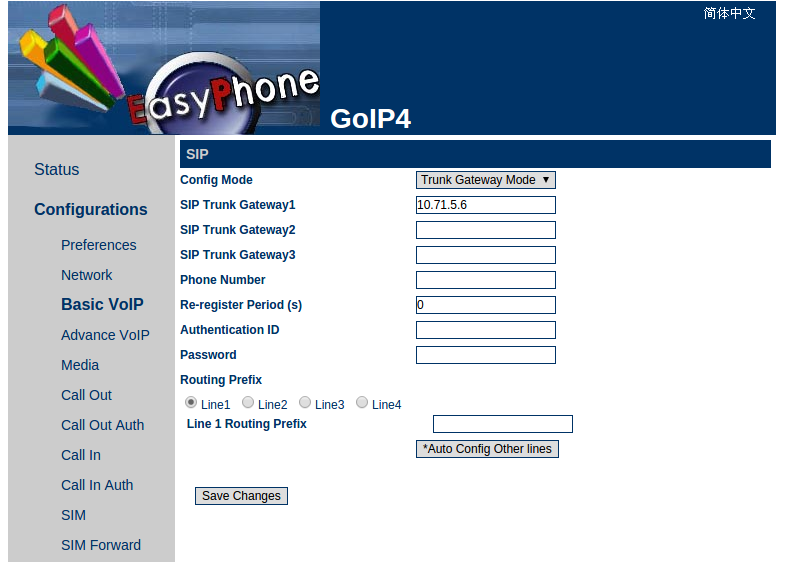

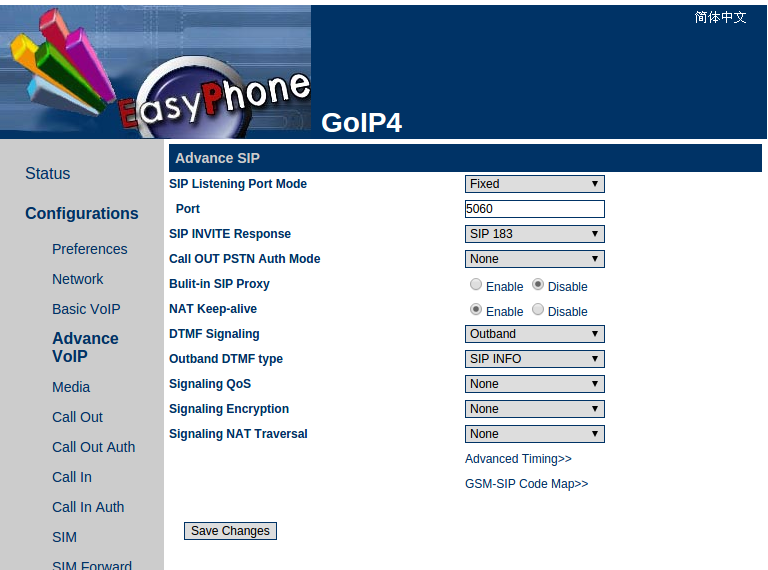

Настройки самого GOIP




к сожалению так ни чего и не заработало.
в логах ipo500 при входящем на gsm наблюдаю следующее

Код: Выделить всё

18366210mS Stun: Info: media ports will be mapped with STUN.
  18366210mS Sip: License, Valid 1, Available 21, Consumed 0
  18366210mS Sip: CheckLineMonitors on SIP Endpoint - KEY & LAMP for SIP Trunk!
  18366211mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) ExtractCallIdFrom Message: Call Id value 1913161325@10.71.5.14
  18366211mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) ExtractCallerFromMessage: From Tag is 1648480885
  18366212mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) No Accept Header
  18366212mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) SendSIPResponse: INVITE SENT TO 10.71.5.14 5060
  18366212mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) Sending code 100 to method INVITE
  18366213mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) SendSIPResponse, Number of Tag Count, 0
  ....
  18366214mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) INVITE Received ep 30.3210.1 -1 SIPTrunk Endpoint(f53bbc08), dialog f53bafe4
  18366214mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) UpdateSIPCallState SIPDialog::INITIAL(0) -> SIPDialog::INVITE_RCVD(10)
  18366214mS Sip: SearchIncomingGroup empty URI look in Users tab
  18366215mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) UpdateSDPState SIPDialog::IDLE(0) -> SIPDialog::OFFER_RCVD(2)
  18366215mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) SIPDialog::BuildFastStartFromSDP
  18366216mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) SIPDialog::BuildFastStartFromSDP: No RFC in response, use pure inband DTMF
  18366216mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) Process SIP request dialog f53bafe4, method INVITE in state SIPDialog::INVITE_RCVD(10)
  18366217mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) CMSetup forwaded to call model owner_ep 30.3210.1 -1 SIPTrunk Endpoint(f53bbc08), dialog f53bafe4
  18366222mS PRN: CDR - TCPSend maxqueuesize=500 operational=1
  18366225mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) Terminating dialog f53bafe4, state SIPDialog::INVITE_RCVD(10) for cause 1
  18366225mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) SendSIPResponse: INVITE SENT TO 10.71.5.14 5060
  18366225mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) Sending code 404 to method INVITE
  18366225mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) SendSIPResponse, Number of Tag Count, 1
   ...
  18366227mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) UpdateSIPCallState SIPDialog::INVITE_RCVD(10) -> SIPDialog::FINAL(40)
  18366228mS Sip: SIP Line (30): Freed Txn Key 2016
  18366230mS Sip: Timer 9 callback
  ....
  18366240mS Sip: SIPDialog TXN : Decoding of message Succeded 1
  18366240mS Sip: Find End Point 30.3210.1 -1 SIPTrunk Endpoint (f53bbc08) Sip CallId 1913161325@10.71.5.14
  18366240mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) Process SIP request dialog f53bafe4, method ACK in state SIPDialog::FINAL(40)
  18367241mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) EPTerminationTimeout, about to delete endpoint
  18367241mS Sip: 30.3210.1 -1 SIPTrunk Endpoint(f53bafe4) SIPDialog destructor ... f53bafe4
  18367241mS Sip: ~SipTrunkEndpoint 30.3210.1 -1 SIPTrunk Endpoint

[Pterodahtil]

какой-то лог у вас не полноценный. Фильтр в мониторе настройте.

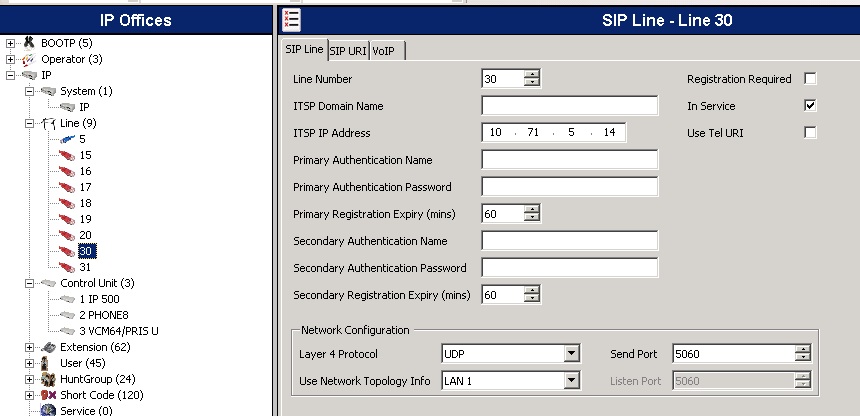

А почему домен в настройках транка пустой?

[Slavka79]

Отключена sip авторизация, поэтому домен не указывал

[Pterodahtil]

Отключена sip авторизация, поэтому домен не указывал

а как это связано?
